DS-K2220X
302922547
Описание

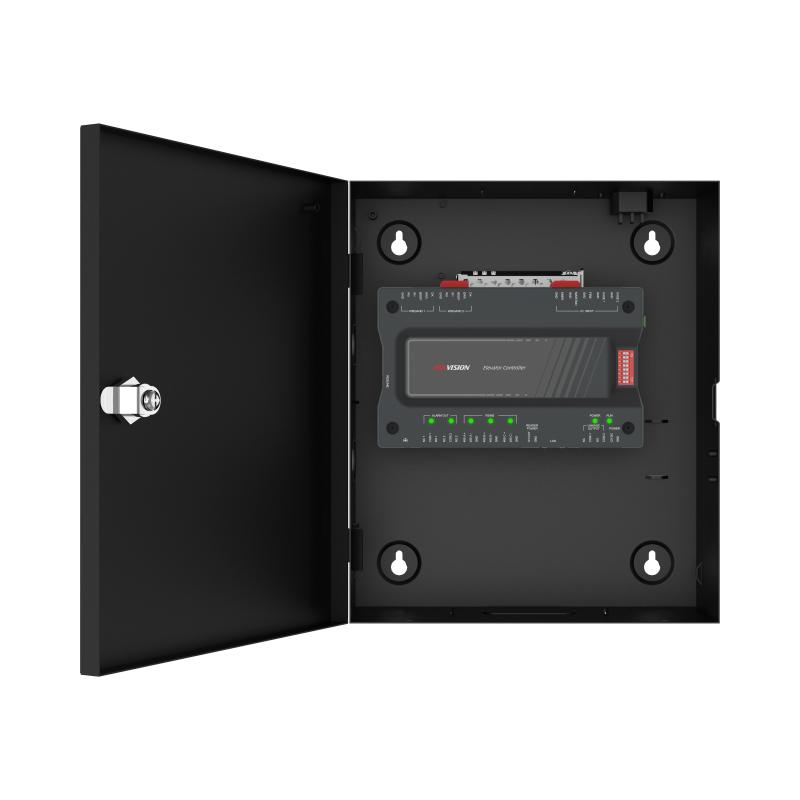

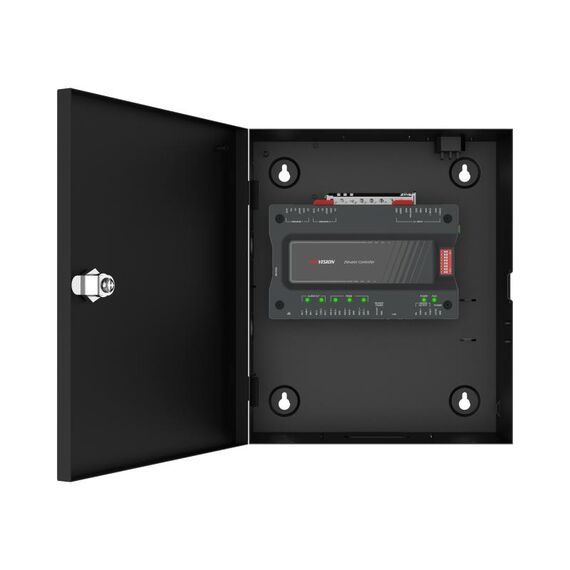

Master Elevator Controller with Enclosure
Storage with 100,000 Cards, 30,000 Fingerprint and 300,000 Events, up to 128 floors’ permissions.
Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers;
Input interface: Emergency Button×1, Fire Alarm Button×1, Maintenance Button×1, Case Input×2;
Output interface: Door Switch Relay×4, Alarm Relay×4.
Uplink Communication: TCP/IP and RS-485;
Support PC Web
· Working conditions: Working temperature, -10 °C to +55°C; Working humidity, 0% to 90% (No condensing); DIN Rail Installation; Power supply 100 ~240 VAC.
· Dimensions and net weight: 235.0mm(W) x 280.0mm(H) x 87.8mm(D), 2040.0 g;
Storage with 100,000 Cards, 30,000 Fingerprint and 300,000 Events, up to 128 floors’ permissions.
Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers;
Input interface: Emergency Button×1, Fire Alarm Button×1, Maintenance Button×1, Case Input×2;
Output interface: Door Switch Relay×4, Alarm Relay×4.
Uplink Communication: TCP/IP and RS-485;
Support PC Web
· Working conditions: Working temperature, -10 °C to +55°C; Working humidity, 0% to 90% (No condensing); DIN Rail Installation; Power supply 100 ~240 VAC.
· Dimensions and net weight: 235.0mm(W) x 280.0mm(H) x 87.8mm(D), 2040.0 g;
Особенности
Бренд
HIKVISION
Единица измерения
- ՀԱՏ
Котнроль доступа
Контроллер лифта
Ապրանքատեսակ
Վերելակի գլխավոր կարգավորիչ
