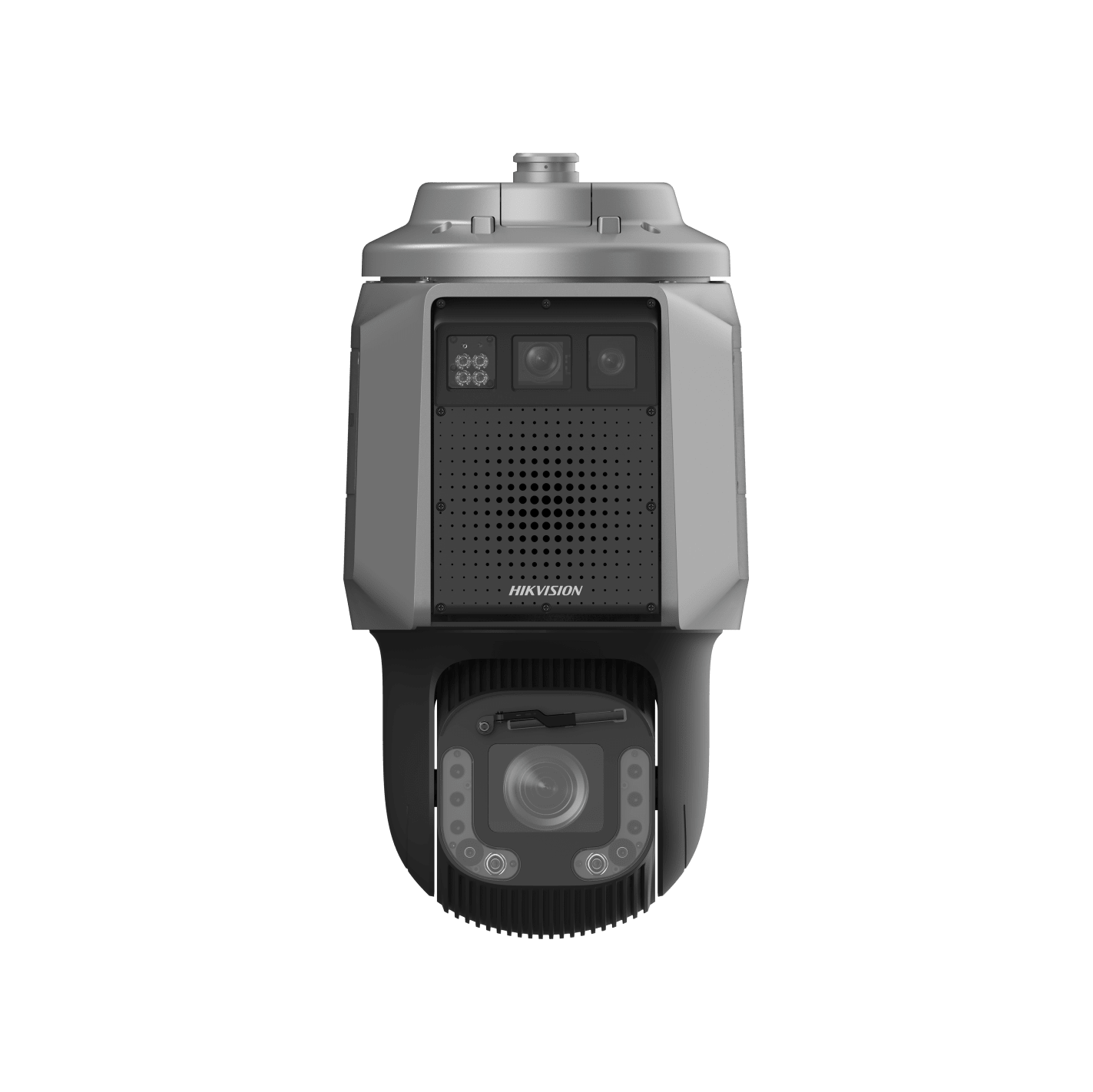

DS-2SR8C432I5XG2-LFW/SP/R12/28(C5F2)

Radar:
Detection range Pedestrian detection 200m
Speed measurement range -16m/s ~ 16m/s
Horizontal angle Narrow beam: 15°
Wide beam: 50°
Vertical angle 30°
Distance measurement accuracy 1m
Angular measurement accuracy 1°
Radar perimeter intelligence Region intrusion, boundary crossing detection
-------------------------------------------------------------------------
Basic
Sensor Type 【Panorama 1】1/1.8" progressive scan CMOS, 【Panorama 2】1/1.8" progressive scan
CMOS, 【Details】1/1.8" progressive scan CMOS
Maximum Resolution 【Panorama 1】2560*1440 【Panorama 2】2560*1440【Details】2560*1440
Minimum Illumination 【Panorama 1】Color: 0.0005 Lux @ (F1.6, AGC ON); 【Panorama 2】Color: 0.0005 Lux
@ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with IR; 【Details】Color:
0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter 1/25s-1/30000s
Day/Night Switching Mode Automatic ICR color to black
Zoom 【Panorama 1】is not supported 【Panorama 2】optical zoom 5x

【Details】Optical zoom 32x, digital zoom 16x
Slow Shutter Supported

Lens
Focal length 【Panorama 1】6 mm; 【Panorama 2】10~50 mm; 【Details】6.0~192 mm

Field of view 【Panorama 1】58°; 【Panorama 2】40°~9°;【Details】59-1.98°

Focusing mode Semi-automatic, Manual, Automatic
Maximum aperture number 【Panorama 1】F1.6; 【Panorama 2】F1.4;【Details】F1.2

Optical zoom speed 【Panorama 1】Not supported; 【Panorama 2】approx. 1.8 s; 【Details】approx. 5.6 s

Fill Light
Types of Fill Light Laser
Distance of Fill Light 【Panorama】: 200 meters 【Detail】: 200 meters

Pan Tilt Unit
Horizontal Range ["Panoramic"] 0°~270°; ["Details"] 0°~360°
Vertical Range ["Panorama"] -11°~11° ["Details"] -20°~90°
Horizontal Speed ["Panoramic"] Horizontal Jog Speed: 0.1°~10°/s, speed adjustable; ["Details"]
Horizontal Jog Speed: 0.1°~210°/s, speed adjustable, Horizontal Preset Speed: 250°/s
Vertical Speed ["Panorama"] Vertical Jog Speed: 0.1°~20°/s, speed adjustable; ["Details"] Vertical Jog
Speed: 0.1°~150°/s, speed adjustable; Vertical Preset Speed: 90°/s
Ratio of Zoom ["Panorama"] Not supported; ["Details"] Supported
Number of Preset Points 300
Power supply DC: 36 V, 4.17A; maximum power consumption 90W (including 6W for panorama
defrosting, 6W for external light supplement; 6W for detail defrosting, 12W for fill
light)
Dimensions Ø 391 mm × 530 mm
Weight Approximately 16Kg
Operating temperature and
humidity
-40°C to 70°C; humidity less than 95%
